Thursday, August 28, 2014

Ulluco: Ulluco Seed 2: This Time It's Boring!

Sequels are almost always disappointing and the followup to last year's ulluco seed discovery is no exception.  I had hoped by now to be able to report germination of some of the seeds that I collected last year, but I can't do so conclusively.  I think that a couple of seeds have germinated and then failed shortly thereafter, as the seeds have split open to reveal what looks like an embryo.  These seeds have not succeeded even in unfurling cotyledons though, so there may be something else going on.

I did find something interesting in the bed where I collected seeds last year.  This ulluco plant appears to be a seedling:
Possible ulluco volunteer from seed
It is possible that it became disconnected from a small tuber, but the roots don't look that way to me.  I've moved it to a pot for further evaluation at the end of the season.

I'm having fairly good luck with ulluco seed again this year, although I am somewhat embarassed to detail the amount of time that I have spent on it.  I spend about eight hours each week doing hand pollination and about four hours searching out and collecting seeds.  For that investment of roughly 72 hours so far this year, I have collected 79 seeds.  So, roughly one seed per hour.  Ouch.  I have listened to some good audio books along the way though.

As with last year, I am getting much better results with plants on which I have done hand pollinations.  This year, I reserved some plants as controls to try to determine whether all that fussy work with a tiny paint brush is really necessary.  So far, I have collected 78 seeds from plants on which I've done hand pollinations and 1 seed from plants on which I haven't.  It's a beauty though:

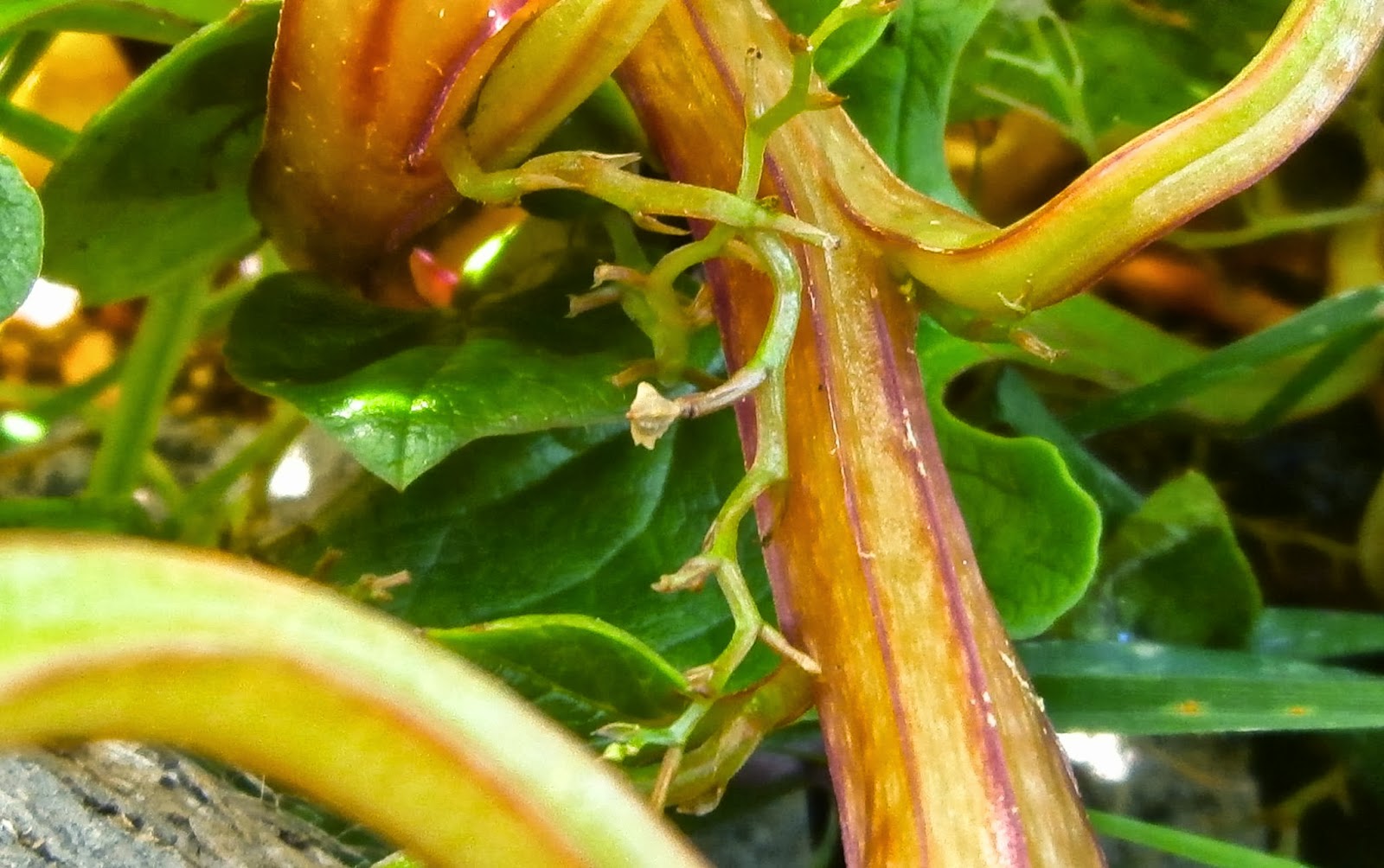

One nearly-mature seed hanging at the bottom of the inflorescense
This does inspire the hope that, if I grow an even larger number of plants, I might be able to dispense with hand pollination.  Of course, if I have to search a much larger number of plants for less frequent seeds, it's probably a wash.

This year, I have collected seeds from the following varieties, ordered from most to least:

1. BK10425.2
2. Chugua Roja
3. Pica de Pulga
4. BK08607.1
5. White/Pink Spots

BK10425.2 and Chugua Roja each set many more seeds than the other three varieties combined.

I collect seeds by removing the entire inflorescense whenever I spot a seed that within roughly a week of maturing.  The seeds are so difficult to find in the dense ulluco foliage that I'm afraid I'll never find the same one twice.  In the picture below, I've circled the seeds.  If you stare at the picture for a while, it may help you to recognize seeds on your own plants.  I wouldn't be surprised if other people have seeds on their plants but just havn't learned to notice them yet.

This tangle of inforescenses is the product of a four hour ulluco seed hunt
over 150 row feet of ulluco
To spot ulluco seeds, look for:

* Anything that is still attached below a gap on the inforescence where the higher flowers dropped.

* Thickened or different colored pedicels (very apparent on BK10425.2 and Pica de Pulga, but not on Chugua Roja).
* Flowers that look slightly larger than others when closed (probably really a seed still covered by sepals).

When uncertainty prevails, squeeze. Seeds harden early and don't yield to fingertip pressure.


Of course, you might be wondering why you should go to the effort of searching out ulluco seeds if the damned things don't germinate.  That is certainly a problem that needs solving.  I plan to try to force the issue this year by doing embryo culture.  This involves dissecting the seed and removing the embryo from the testa.  This eliminates the tissues that are typically responsible for enforcing dormancy.  The embryo can then be grown in sterile culture, from which point it develops in the usual fashion.

That all sounds wonderful and it is fairly trivial with large seeds.  Unfortunately, ulluco seeds are pretty small and the dissection is not going to be easy.  I hope to get 300 seeds this year, which might be enough to allow for mangling them as I ascend the learning curve.  If I get enough, I will also set some aside for regular germination experiments at different temperature and light levels and perhaps supplemental hormones as well.

Thursday, August 14, 2014

Mauka: Dare I declare success?

My name is Bill and I am an enthusiastic murderer of unusual plants.  It's sad but true.  If you look upon me as any kind of expert because I have a blog, I hate to disappoint, but you don't witness the everyday carnage that I hide from the camera.

It seems that the rarer the plant and the more difficult to replace, the faster that I kill it.  This has certainly been the case in the past with mauka (Mirabilis expansa), which didn't last a week in two earlier attempts.  I did my very best to kill mauka again this year, and nearly succeeded (more on that below), but I think the plants have thwarted my efforts this time!

I was able to get mauka from two different sources this year.  I first purchased a plant of mauka 'Blanca' from Sacred Succulents, which arrived in good condition and well rooted unlike my previous attempts with cuttings.  It has given me no trouble and is now growing into a good sized plant:

Mauka Blanca plant
Those are standard 8 by 16 inch blocks, for scale.  It is getting pampered in a raised bed this year, but I hope to grow mauka in the field next year.  It doesn't seem to be particularly fragile once it gets going.

As I mentioned in a previous post, a friend also shared some mauka seeds with me.  They germinated well and I got 12 plants.  On July 3rd, they looked like this:

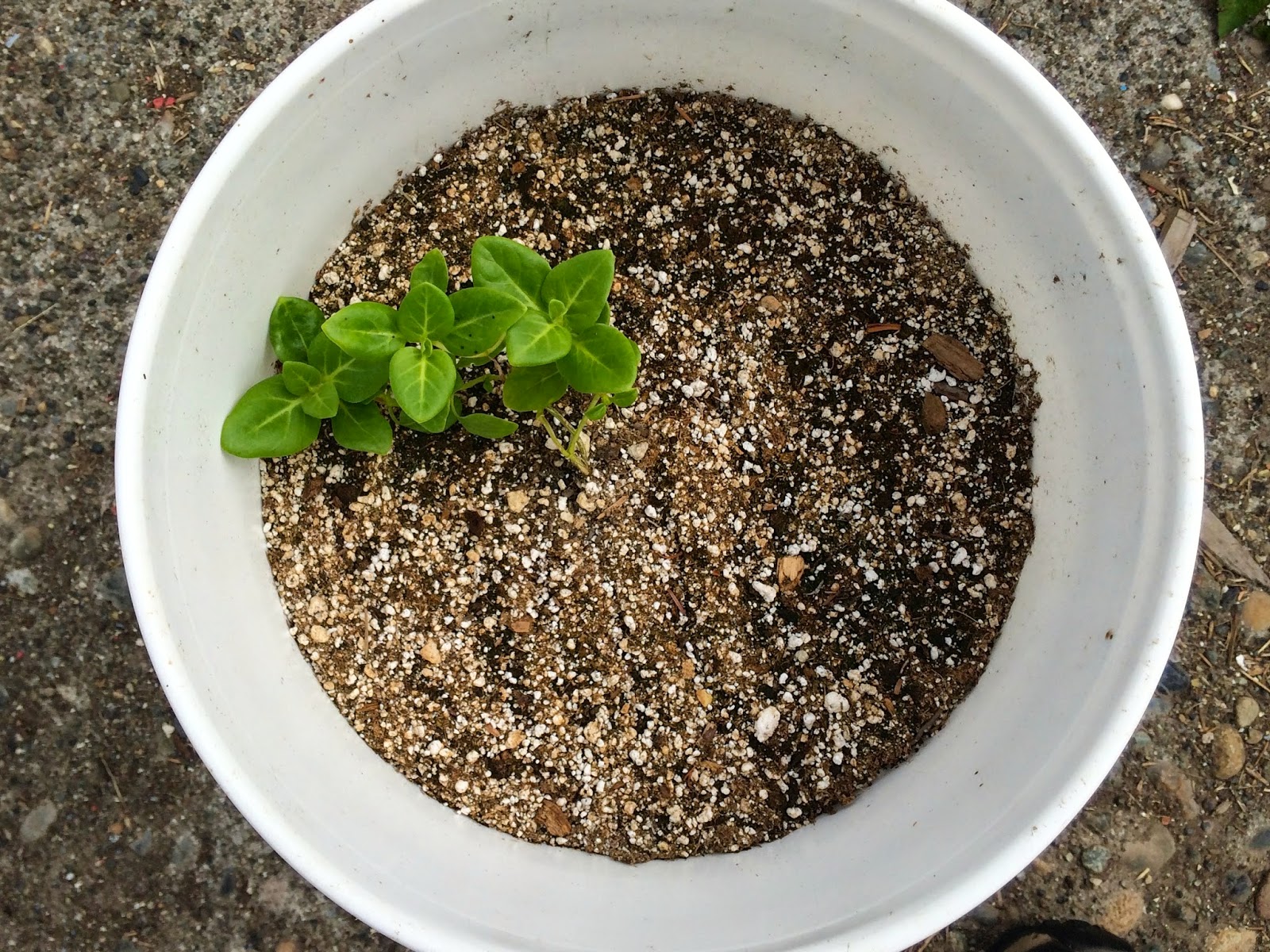

Mauka seedlings at about a week

And now, they look like this:

Mauka seedlings tucked in with some mid-season mashua cuttings
Largest of the mauka seedlings
The plants are really coming along nicely, considering that they took some serious damage overnight on July 20th.  It turns out that some hungry rodent really has a taste for mauka and it ate almost all of the leaves on all of the seedlings.  I thought that I was going to lose them all at first, but they bounced back pretty quickly.  Amazingly quickly when you consider that they were plants with only three or four sets of leaves and those chewed back to the stems less than a month ago!  I put guards over them at night for a few weeks, but I'm now leaving them unprotected again.

So far, mauka seems to be similar to ulluco in its appeal to pests.  That is, everything likes to eat mauka.  In addition to nocturnal rodents, slugs, caterpillars, and various small leaf chewing insects have all made an appearance.  Happily, the plants now are growing at a rate that outpaces the damage.  In fact, the seedlings are growing so fast that I wonder if they might soon outgrow the mature plant.

I think that the plants will probably have filled out those raised beds well before the first frost comes along.  I'm undecided at this point about how I will overwinter them.  Mauka survives winters in the UK that are just a little warmer than ours, so I'm tempted to leave them out.  Most likely, I will dig some and bring them inside as an insurance policy and leave the rest out to test their hardiness.

The seedlings, which I understand came from another mauka Blanca plant, are very similar to the plant that was started as a cutting, but there may be some slight differences.  The leaves are a little more pubescent and slightly more rounded.  These features may be a result of the growth stage of the plant or perhaps there is a little bit of variability in mauka grown from seed.

Anyway, assuming I can keep the plants alive over the winter, it looks like mauka is here to stay.  Perhaps I'll even get to taste it at some point.

Monday, July 28, 2014

Oca: The next generation

Today I collected the first of my second generation crosses.  These are the first seeds produced by plants that we grew from seed.


Hopefully the first of many, although I won't inflict you with any more pictures of seeds in bags.  Since I don't know the characteristics of many of the parent plants at this point, I am blindly crossing them.  I hope to go about this in a more directed fashion in the future when I have collected more information.  Once I have harvested all of the 2013 and 2014 varieties this fall, I will be able to use the information to select what I think are the more interesting crosses from those that I am making now.

Still, for an octaploid crop like oca, it will take several generations of data to even begin to understand what each variety is likely to contribute.  This is a long term process.

But, I've just taken the second step.

If you are interested in minutiae, those crosses are:

((Bolivian Red x Hopin) = 1x17x11) x (1x11x04 = (Hopin x Mexican Red))

and

((Hopin x Mexican Red) = 1x11x03) x OE Orange

Saturday, July 26, 2014

Oca: Pie

At one point while chewing on a piece of oca stem, it occurred to me that it tasted quite a bit like gooseberry.  As a lover of gooseberry pie, my next thought was to wonder whether oca stems could be used to make a pie.  Today, we put it to the test.

You might call it an acid test.  This cullinary experiment is not entirely without risk, as oca is high in oxalic acid, the stems are not commonly eaten as far as I know, and I know of no measurements of the oxalic content of the stems, although at least once source indicates that they contain more than the tubers.  I've eaten enough oca stem to know that it doesn't seem to cause me any troubles, so I'm not too concerned, but there is always a little risk in trying new foods.

Oca stems stufficient to yield about a cup after trimming
I collected a box of oca stems, trimmed them up, and washed them.

Trimmed oca stems.  A mix of red and green seemed like a good choice.

As usual, I underestimated how much to pick.  The trimmed oca stems above yielded about a cup when cut into pieces.  The pie recipe called for three cups, requiring a second trip.

Small pieces worked out nicely.  You don't notice any fibers at this size.
I cut the stems into 1/3 to 1/2 inch sections - bite sized or roughly gooseberry sized since we were using a gooseberry pie recipe.

The recipe used the following ingredients for a nine inch pie:

3 cups of oca stem pieces
1 cup of white sugar
2 tablespoons tapioca
2 tablespoons corn starch
1/2 teaspoon salt
1 tablespoon water

All ingredients but the oca were brought to a boil, heat turned off, and the oca then mixed in before pouring into a store bought crust (having no idea if the results would be edible, we decided not to waste time making crust).  35 minutes in the oven at 400F.

I was surprised to see that the stem pieces retained their color (tubers don't).
They also turned the filling a bright pink color, not too different from gooseberries.
I won't win any awards for food photography, but the pie turned out to be pretty tasty.  It is very much like a gooseberry pie.  Not as tart as green gooseberries, but still pretty tart.  Perhaps closer to a blend between a gooseberry and a rhubarb pie.  I think next time I would add another cup of oca stem as the pie was a bit thin.

We both detected a little bit of mouth/throat tingle, probably due to oxalic acid.  A similar experience is produced by rhubarb or sorrel.  Nothing alarming and I have no reason to think that an oca pie is any more toxic than a rhubarb pie.  It might not be a good idea to eat the whole pie in one sitting; moderation is always a good idea.

If you like your pies tart with a hint of danger, double-check your health insurance and give it a try.

Thursday, July 24, 2014

Oca: Early flowering

Last year, I struggled to find oca varieties to cross early in the season.  I had more short-styled varieties than mid-styled.  About a month after flowering began, I had enough different varieties flowering so that I was able to produce a good quantity of seed.

This year, I have a similar problem.  Flowering started a month earlier than last year, but almost all the early flowering varieties were mid-styled.  You can see in the chart below that from June 1st until July 3rd, I had mostly mid-styled varieties.  One long-styled and one short-styled variety did flower during this period, but they produced very few flowers.
This is not a serious problem for me.  Flowering continues all season, so it is just a matter of waiting for more varieties to flower.  As you can see, by the 13th of July, I had plenty of compatible varieties to work with and, ten days later, I'm almost to the point of having more flowers than I have time to work with.

But, looking at the bigger picture, if we're going to make oca a more common crop in the US, we need a larger breeding effort.  Unfortunately, most of the country has a climate that is not conducive to flowering - at least in the summer.  Although oca may survive warm summers, it generally doesn't flower in warm weather.  In most of the US where summers are mild, freezing weather often comes too early for oca.  Four apparent goals arise from these facts:

1. Make oca produce tubers earlier to beat the frost.

2. Make oca more resistant to frost so that it can stay in the field longer.

3. Make oca more resistant to heat so that it will flower in the summer.

4. Make oca flower earlier so that breeding work can be done during milder spring weather.

There are many people trying for goal #1.  I have no idea how much work this will require.  An early oca might pop up among this year's seedlings or it might take years of small, incremental adjustments to oca's day length sensitivity.

Goal #2 could have a lot of payoffs, but increasing cold weather resistance is a notoriously difficult breeding goal.  Despite the fact that oca is grown under conditions that flirt with freezing and that it would undoubtedly have been valuable to be able to grow it at higher elevations in the Andes, most varieties are not particularly frost resistant.  But, if the plant could hold longer in the field, that might give growers in hot summer climates and opportunity to collect seed during fall and to begin breeding better adapted varieties for their conditions.

Goal #3 is difficult to assess.  It doesn't get hot here.  I can't test for differences in heat tolerance and instead rely on what other growers report.  This may require the next goal to be completed first.

Goal #4 seems like it might be the best approach.  Early flowering would provide the opportunity to catch milder weather in the spring without the threat of frost.  Mature seed is produced in three to four weeks, so could be obtained by the beginning of July.  This might be enough of a window to do some oca breeding in climates where oca doesn't normally flower in the summer and early fall due to high temperatures and/or low humidity.

My experience shows that some varieties already flower early enough for this purpose.  That's good news; traits that already exist obviously take less work to breed into new varieties.  Unfortunately, most of the oca that flowered in June was mid-styled.  Mid-styled varieties can cross-pollinate (and self-pollinate) but the odds of success aren't that great.  Ideally, we need several varieties each of at least two of the flower morphs.  They haven't turned up this year, but maybe next year.  A combination of varieties with different flower morphs that begin to flower in early June (or even May if we're feeling ambitious) could provide an opportunity for expanding oca breeding out of ideal climates.

Sunday, July 6, 2014

Oca: How to hand pollinate oca

Several people have asked how I do hand pollinations with oca (Oxalis tuberosa).  It is hard to show in pictures, so we did a brief video demonstration.

The video will make more sense if you read these posts first:
Maximizing seed yield of crosses
Seeds from cuttings



A few points to clarify:

* All mentions of male and female flowers refer simply to the one that I have designated at the female (receiving the pollen) or the male (donating the pollen).  Oca does not have different male and female flowers.

* I do most crosses on cuttings indoors now due to a higher success rate, but you can use the same technique on the plant.

* You can use a brush to transfer the pollen instead of direct contact between the flowers, in which case you don't have to denude the flowers if you have a very small brush and good coordination.  You can also keep both the designated male and female flowers this way, instead of discarding the male.  If you only have a few flowers, that might be advantageous.  If you have hundreds of flowers to work with, this method is more efficient.

* If you are very careful, you can get two pollinations from each whorl of stamens on the flower.  For example, with one short-styled flower, you could pollinate two mid-styled and two long-styled.  I've done up to six pollinations from a single whorl of stamens, but the number of pods and the number of seeds per pod drops considerably after the second pollination.

* There are unopened flower buds on this cutting.  As they open, you can pollinate them as well.  There doesn't seem to be any problem with having five or six pods maturing on a single cutting.

Wednesday, July 2, 2014

Some quick updates

I have found very little time for blogging this spring and I don't anticipate much change through the summer.  We're growing more than ever and trying to manage it on top of having a "real" job.  As it happens, my real job is not likely to continue for much longer, so I may become a full time micro farmer just as the growing season comes to an end.  Although there may seem to be more than a little irony in that timing, being free around harvest time in Nov/Dec wouldn't be entirely unwelcome as it is going to be a big job.  Anyway, this may not prove to be much of a blogging year, but there is still a heck of a lot getting done.

I am spending a lot of time updating the Andean Root and Tuber Crops Wiki, which has replaced some of my blogging.  What it lacks in style, it more than makes up for in data value.  I've said a few times that the most important thing that we're growing this year is information and I become more convinced of this every day.  I'm now able to query for data about many varieties of plants and investigate potential correlations that would be very laborious to investigate otherwise.  New answers lead to new questions, but I am hopeful that even the more genetically complex Andean plants will yield some patterns that will be useful in breeding efforts.

Oca bed #1
All 2014 seedlings - every plant is unique
Oca

The oca crop is coming along nicely.  We have at least one sixteen foot row for each of 64 established oca varieties.  On top of that, we have another 44 rows in which we are growing this year's seedlings and mini tubers of last year's.  This comes in total to about 800 new oca varieties, despite our early season loss of about 20% of the crop.  We will keep only a small fraction of those.  I'm not sure what the number will be, but probably not more than a quarter of them,  Whether we keep them or not, of course, I hope to collect a full set of data for each plant.

Flowering began early this year, with our first flower from the variety Pale Pink coming in on June 1st.  We've since had another 12 varieties flower.  You can keep up to date on flowering by checking out our Flowering Report.

I've done about two dozen crosses, but have not yet harvested any seed.

I hesitate to mention the most ignominious oca development of the year, but this blog certainly magnifies successes and minimizes the failures, so it is good to add in some of the humbling details on occasion.  I was very excited to have the opportunity earlier this year to swap for some oca seed produced by a researcher in Bolivia.  That was a chance to introduce a lot of new genetics at once.  I received about 200 seeds, started them all and, although the germination was a lot lower than my own seed, I had almost 80 seedlings going.  Then, overnight, some kind of mold swept the trays.  The seedlings all went fuzzy and many of them died before morning.  They looked healthy when I went to bed and were dead in the morning.  In horror, I sprayed everything down with dilute hydrogen peroxide and, either due to or despite this quick action, saved eight seedlings, of which six ultimately survived.

I was rather distraught at the time, but now I have six healthy plants adding to our growing gene pool, which is six more than I had before.  So, not a total loss and, in fact, still a considerable gain in diversity.  The moral of this story is that it is probably a good idea to surface sterilize oca seeds.  I bake my potting soil in the oven, so the mold probably came in either on the seeds or from the air.  The widespread nature of the event suggests that the seeds were the source of contamination.  I can't do much about floating spores, but I can at least try to clean the seeds before sowing.

Survivors of the Great Bolivian Oca Massacre of 2014

Ulluco

I get more inquiries by email about our ulluco seeds than anything else.  I wish that there were more news about my favorite Andean crop.  A few of the ulluco seeds that I harvested last year have burst open, looking promising, but have then failed to develop.  I am now uncertain if this had anything to do with germination or was just some mechanical process.  I console myself that many of the seeds in the Finnish study took more than a year to germinate, so I'll just keep waiting.  Meanwhile, I hope to be able to get a lot more seed this year, which would give me the opportunity to do some experimenting with different germination strategies.

We are growing 18 varieties this year, about half of which I started from tissue cultures over the winter.  The plants are looking good and flowering began about two weeks ago.  I head out with my paintbrush to do pollinations whenever I can find the time.

I am also undertaking an experiment to try to produce octoploid ullucos as described by Viehmannova et al. in Induced polyploidization and its influence on yield, morphological, and qualitative characteristics of microtubers in Ullucus tuberosus.  I have treated ulluco cultures as described and have sixteen survivors.  Now I just have to wait until they grow large enough to check for chromosome doubling.  The odds aren't that great with only sixteen plants, but if it doesn't work, I'll keep trying.  It could be a route to improved fertility.  Or none at all.

Mauka


Mauka Blanca plant
I am very excited to have a third try at mauka.  I have twice managed to kill cuttings that I was assured "root easily in wet soil."  My experience was more like "collapse readily into piles of corruption in wet soil."  Well, this time things seem to be going better!  I purchased a rooted plant of 'Blanca' from Sacred Succulents and while it hasn't exactly erupted into new growth, it looks healthy and has survived well past the two day period in which I have previously killed mauka.  Yay!

Even more exiting, a friend was able to obtain some mauka seeds and was kind enough to share them with me.  They germinated pretty easily and are now working on their first true leaves.  I believe that these are self-pollinated seeds of the variety Blanca.  They will probably be true to type, because mauka is a diploid (kind of unusual for an Andean crop).  So, I may have taken two routes to get to the same variety of mauka.

By the way, I soaked the seeds for three hours in water and then surface sowed on saturated potting soil on a 70F day / 60F night heat mat.  I had germination within a week and ultimately got 12 out of 15 to germinate, so I can recommend that method if you find yourself in possession of mauka seeds.

Mauka Blanca seedlings
All lopsided, with one cotyledon larger than the other
Those of you uninitiated in the mysteries of obscure Andean crops may be wondering what mauka is.  Nope, it is not the same as mashua nor maca.  Try to keep it straight, will you?  Mauka is probably the rarest of the Andean crops, having been known only from historical descriptions until it was rediscovered in some garden plots in the 1960s.  It was unknown to science, that is; I'm sure the people tending the gardens knew that it was there.

Anyway, I'll skip recapitulating descriptions that are available elsewhere and refer you to The Vegetable Garden for an intro to mauka.

Now I just need to find a plant of the variety Roja and I'll have the makings of a mauka breeding project.  Of course, that takes for granted that these plants survive the rest of the year, which may be tempting fate.

Arracacha

I am only half as good at killing arracacha as I am at killing mauka, but that is probably only because I have had half the opportunity.  My previous arracacha lived its whole life in the greenhouse, an unhappy looking plant the entire time, and slowly faded away over the first half of winter, leaving no trace.  I bought a plant from Sacred Succulents this year, giddily potted it up in a bucket, set it in partial shade to adjust, and watched all of its foliage turn yellow and develop brown spots over a few days.

I was philosophical about it.  While I expect mauka should be successful in this climate, arracacha is probably a stretch.  It is grown a bit lower in elevation in the Andes and expects probably a bit more warmth.  It will be hard to get it through the winter.  My best hope of growing arracacha is to get a plant to set seed and try to grow some better adapted plants (or perhaps to find a Peruvian variety, but those seem to be quite difficult to locate).

Anyway, looking at a probable loss of the plant, I cut it back to nothing but the cormel and shrugged my shoulders.  When a plant looks that sick, you might as well try desperation tactics.  To my surprise, it grew anew and the yellowing affliction has not reappeared.  This is a Puerto Rican variety, whereas the variety that I previously killed was probably Brazilian.  I really have no idea what the climate conditions are like where arracacha is grown in Puerto Rico, but I imagine it is probably fairly warm compared to this cool maritime climate.  I will continue to cross my fingers, but I'm not counting on bringing in an arracacha harvest any time soon.

If you now know mauka from maca but aren't so sure about arracacha, here is a good article that covers the basics.

There is a lot more growing, not the least of which are weeds that must be pulled before the jungle closes in on us.  So, until next time, good growing!
